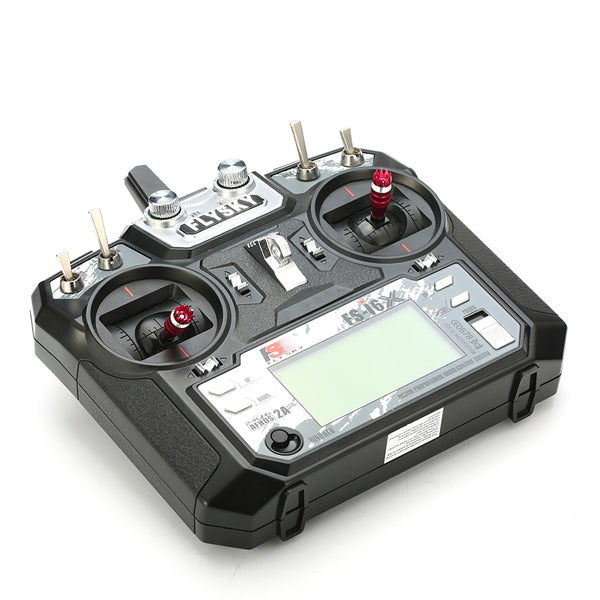

FlySky FS-i6X i6X 10CH 2.4GHz AFHDS 2A RC Radio Transmitter With FS-iA10B Receiver for FPV RC Drone Engineering Vehicle Boat Robot
No reviews
$105.20
FlySky FS-i6X i6X 10CH 2.4GHz AFHDS 2A RC Radio Transmitter With FS-iA10B Receiver for FPV RC Drone Engineering Vehicle Boat Robot
Overview:
The FS-i6X is the upgraded version of the FS-i6, which is a radio that has been around for several years and stood the test of time with a popular following providing lots of related YouTube videos for support. This FS-i6X version of the i6 retains the original form factor of the i6, but adds support for a 10 channel receiver via a firmware upgrade, whereas the i6 only supports 6 channels.The transmitter comes with the FlySky's FS-X6B which is a dual antenna receiver. Best still it arrives pre-bound so you can literally be up and running in minutes. It also has the added benefits that the board, which measures 36x22mm has 30.5mm mounting holes so it can be added to an FC stack. While the X6B receiver has traditional PWM channels output, it also supports iBus, SBUS and PPM. The advantage of these Rx protocols over traditional PWM channels is that you only need to use one signal wire rather than one for each PWM channel.
FS-i6X Transmitter Specifications:Item: FS-i6X RC TransmitterChannel: 6-10 (Default 6)
Model Type: Fixed-Wing/Glider/Helicopter
RF Range: 2.408-2.475GHz
RF Power: < 20dBm
RF Channel: 135
Bandwidth: 500KHz
2.4GHz System: AFHDS 2A / AFDHS
Modulation Type: GFSK
Stick Resolution 4096
Low Voltage Warning: < 4.2V
DSC port: PS/2 Port PPM
Chargeable: No
Antenna Length: 26mm (Dual Antenna)
Weight: 392g
Power: 6V DC 1.5AA*4
Display: STNTransflective Display, LCD 128x64 Lattice, VA 73x39mm, LCD with white backlight
Size: 174x89x190mm
On-line Update: Yes
Color: Black
Certificate: CE0678, FCC ID: N4ZFLYSKYI6X
FS-iA10B Receiver Specifications:Item: FS-iA10B Receiver
Channels: 10
Channels: 10
Model Type: Fixed-Wing/Glider/Helicopter
RF Range: 2.4055-2.475GHz
RF Channel: 140
RF Receiver Sensitivity: -105dBm
Bandwidth: 500KHz
2.4GHz System: AFHDS 2A
Modulation Type: GFSK
Power: 4.0-6.5V DC
Antenna Length: 26mm (Dual Antenna)
Weight: 17.6g
Size: 50.6*34.9*14.9mm
i-BUS Port: Yes
Data Acquisition Port: Yes
Color: Black
Certificate: CE0678, FCC
FS-i6X Transmitter User Manual,
If you want the FS-i6X Transmitter with X6B receiver, please
Package Included:1X Flysky FS-i6X 10CH 2.4GHz AFHDS 2A RC Transmitter1X FS-iA10B Receiver
Features:
* The AFHDS 2A (Automatic Frequency Hopping Digital System Second Generation) developed and petented by FLYSKY is specialy developed for all radio control models. Offering superior protection against interference while maintaining lower power consumption and high reliable receiver senstivity, FLYSKY's AFHDS technology is considered to be one of the leaders in the RC market today.
* Bidirectional Communication
*Capable of sending and receiving data, each transmitter is capable of receiving data from temperature, altitude and many other types of sensors, servo calibration and i-BUS Support.
* Multi-channel Hopping Frequency
* This system bandwidth ranges from 2.408GHz to 2.475GHz. This is divided in 135 channels. Each transmitter hops between 16 channels (32 for Japanese and Korean version) in order to reduce interference from other transmitters.
* Omni-directional Gain Antenna
* The high efficiency Omni-directional high gain antenna cuts down on interference, while using less power and maintaining a strong reliable connection.
* Unique ID Recgnition System
*Each transmitter and receiver has it's own unique ID. Once the transmitter and receiver have been paired, they will only communicate with each other, preventing other systems accidentally connecting to or interfering with the systems operation.
* Low Power Consumption
* The system is built using highly sensitive low power consumption components, maintaining high receiver sensitivity, while consuming as little as one tenth the power of a standard FM system, dramatically extending battery life.
FS-i6X Transmitter User Manual,
If you want the FS-i6X Transmitter with X6B receiver, please
Package Included:1X Flysky FS-i6X 10CH 2.4GHz AFHDS 2A RC Transmitter1X FS-iA10B Receiver
,,,,,,,,,,
